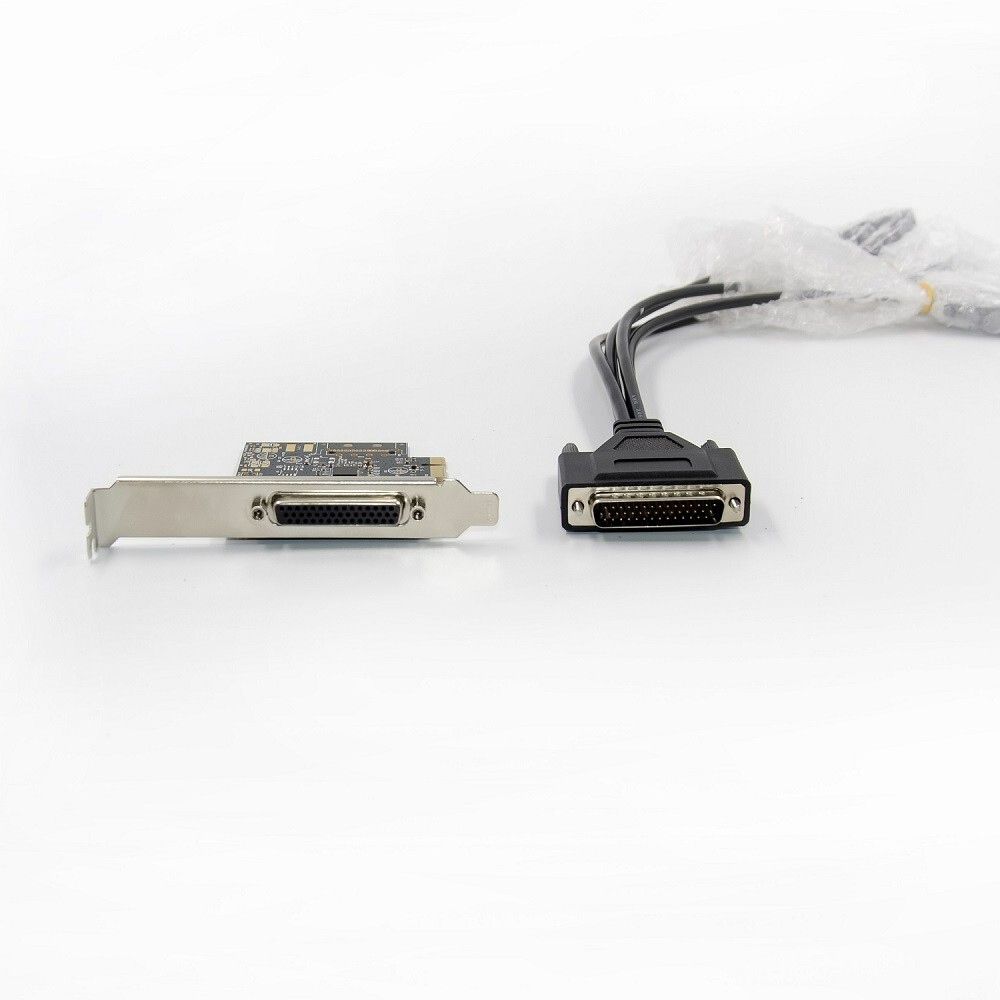

X-MEDIA XM-PEX-4S 4-Port DB9 RS232 Serial PCI Express PCIe Card w/Breakout Cable
Specifications
| Return Shipping Will Be Paid By | Seller |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Compatible Brand | Universal |
| External Interfaces | Serial (RS-232) |
| MPN | XM-PEX-4S |
| Item Length | 4.75 Inch |
| Compatible Product Line | Universal |
| Maximum Data Rate | 115 Kbps/Port |
| Brand | X-MEDIA |
| Form Factor | Adapter |
| Unit Type | Unit |
| Number Of Ports | 4 Ports |
| Manufacturer Warranty | 1 Year |
| Item Height | 0.75 Inch |
| Model | X-MEDIA XM-PEX-4S |
| Country/Region Of Manufacture | China |
| Compatible Port | PCI Express |
| Item Width | 3.75 Inch |
FEATURES: · Compliant with PCI Express specification Rev. 2.0 · Compatible with industrial standard 16C450.16C550.16C650.16C750.16C950 UART · Data transfer rate up to 115200bps on each port · Support on chip 256-Byte depth FIFO in transmit, receive path of each serial port · Support 5-6-7-8-bit serial format, 1 or 2 Stop bit mode · Support MODEM signal CTS, DSR, RI, DCD, DTR, RTS can be converted to RS232 level · Odd, Even, No parity, space 0 and mark 1 etc. · Low Profile Bracket included for slim size desktop PC installation SPECIFICATIONS: Standard: 16C450.16C550.16C650.16C750.16C950 UART BUS Type: PCI Express Rev. 2.0 (PCIe x1) Interface: 4 x DB9 RS232 Serial Port Chipset: ASIX AX99100 Data Transfer Rate: 115200bps/port Compatible PC: Full/Slim Size Desktop PC OTHERS: Certification: FCC, CE, RoHS Package Content: XM-PEX4S Controller Card DB9 Cable Low Profile Bracket CD Driver Disk User Guide Supported OS: Windows XP/Vista/7/8/8.1/10 (32&64Bit) Linux Kernel 4.x/3.x/2.6x Environment: Operating Temperature: 0°C~40°C (32°F~104°F) Storage Temperature: -40°C~70°C (-40°F~158°F) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing Return Policy: Seller provides 30-DAY Return Policy provided that the procedures and requirements referred to below are followed: Refunds or exchanges may only be made within 30 days of receiving the merchandise. If an item has been opened or used, a 25% processing fee will be applied for a refund or an exchange. Products that are returned to Seller with missing, damaged or altered Box, Parts, or Accessories will be either refused or charged a processing fee equal or greater than 25%. All other returns due to the reason of Order by Mistake, Change of Mind, Doesn’t Fit, Found Better Price are subject to a 40% deduction of the original purchase price. This processing fee is to cover the 2-Way shipping fees of shipping to you and getting the product back. Please read the description thoroughly to ensure it is the right product for you. Please feel free to ask if you have any question prior to placing the order.
