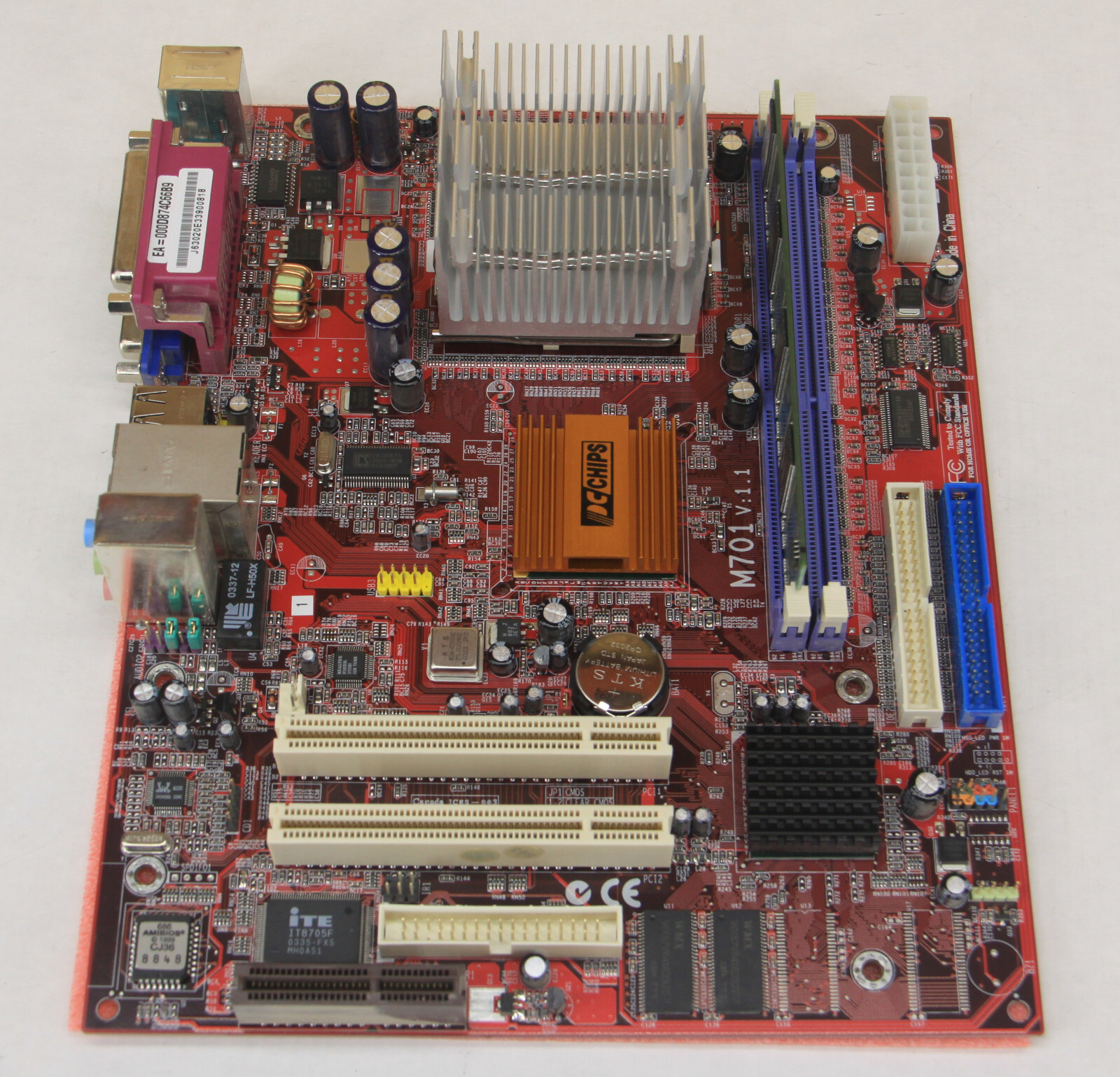

PC Chips M701 V1.1 Motherboard w/ Via C800A CPU, 128MB DDR RAM, Fanless, Silent
Specifications
| All Returns Accepted | ReturnsNotAccepted |
| Socket Type | Socket 7 |
| CPU Series | Via C3 |
| Compatible CPU Brand | Intel |
| Custom Bundle | Yes |
| Input/Output Ports | D-Sub |
| CPU Bus Speed | 133 MHz |
| MPN | M701 Via C3 Samuel |
| Most Suitable For | Casual Computing |
| Memory Type | DDR1 SDRAM |
| Motherboard Brand | PCChips |
| CPU L2 Cache | 64K |
| Form Factor | MicroATX |
| Expansion Slots | PCI x2 |
| Model | M701 V1 .1 |
| CPU Clock Speed | 800MHz |
| Features | On-Board Audio |
PC Chips M701 V1.1 Motherboard Combo With * Micro ATX Motherboard M701 V1.1, Socket 7 with 133MHz FSB support* Via 800MHz C800A CPU* 128MB DDR RAM module* Nice array of legacy ports including VGA, PS/2, Serial, Parallel, Network, Audio, PCI, IDE, and Floppy Drive* CPU runs fairly cool and generally doesn't need a fan as long as there's some airflow from a case or power supply fan * All good capacitors* I/O shield* ATA-100 cable * Tested Good This is a great board for a repair or retro system build. NOTE: The onboard video works great with CRT monitors, but some LCD panels refuse to sync to the signal in some modes, including the initial bootup/BIOS screen in some cases. If you plan to use this board, I recommend having a CRT monitor available, or a PCI video card to bypass the onboard video, at least for initial configuration.
