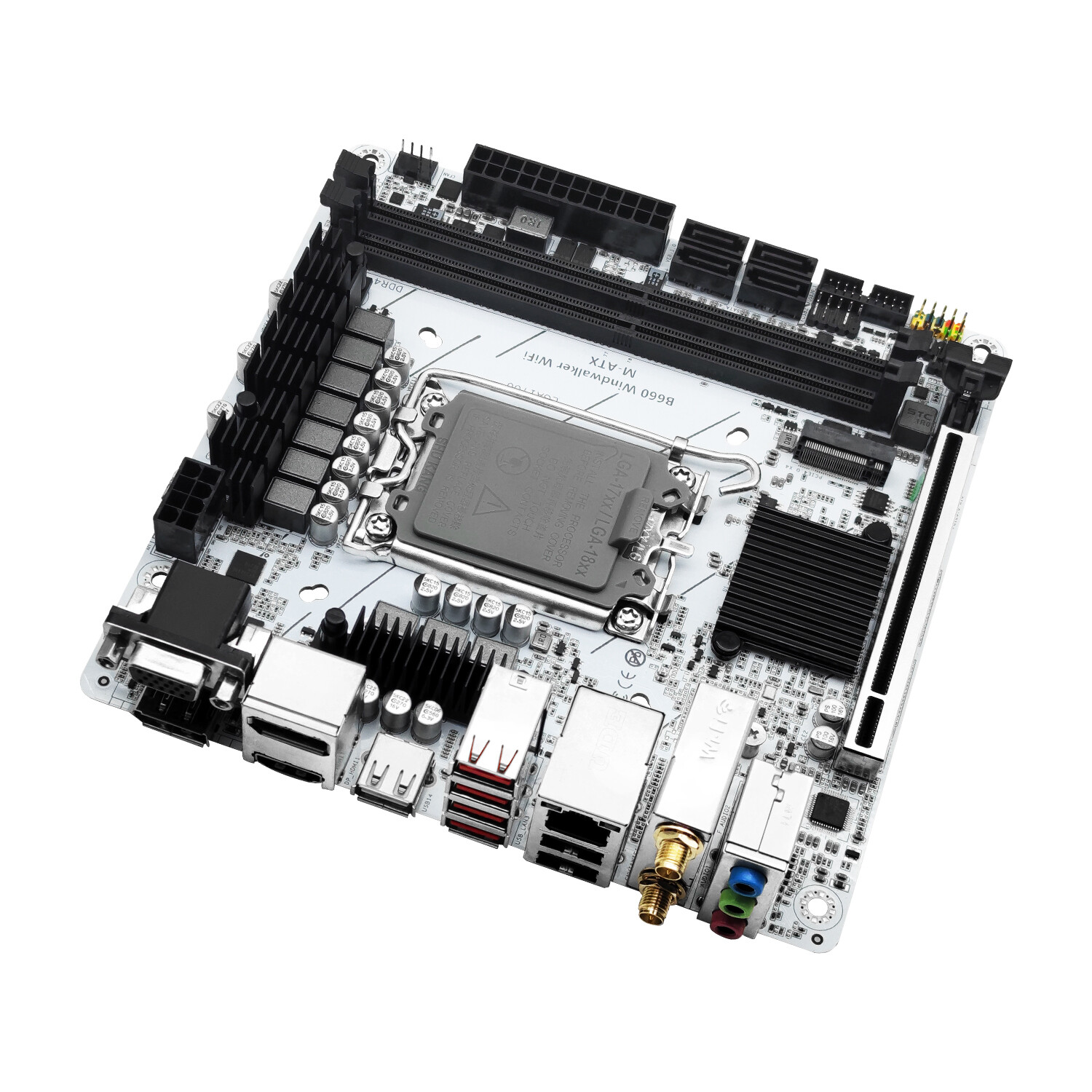

LGA 1700 B660 WiFi Motherboard HDMI USB 2.0 USB 3.1 Support DDR4 RAM With Buzzer
Specifications
| Return Shipping Will Be Paid By | Seller |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 60 Days |
| Socket Type | LGA 1700 |
| Compatible CPU Brand | Intel |
| Input/Output Ports | DisplayPort |
| Most Suitable For | Casual Computing |
| Item Length | 170mm |
| Memory Type | DDR4 SDRAM |
| Brand | Machinist |
| Form Factor | ITX |
| Unit Type | Unit |
| Expansion Slots | M.2 |
| Manufacturer Warranty | 6 Months |
| Features | On-Board Audio |
| Country/Region Of Manufacture | China |
| Item Width | 170mm |

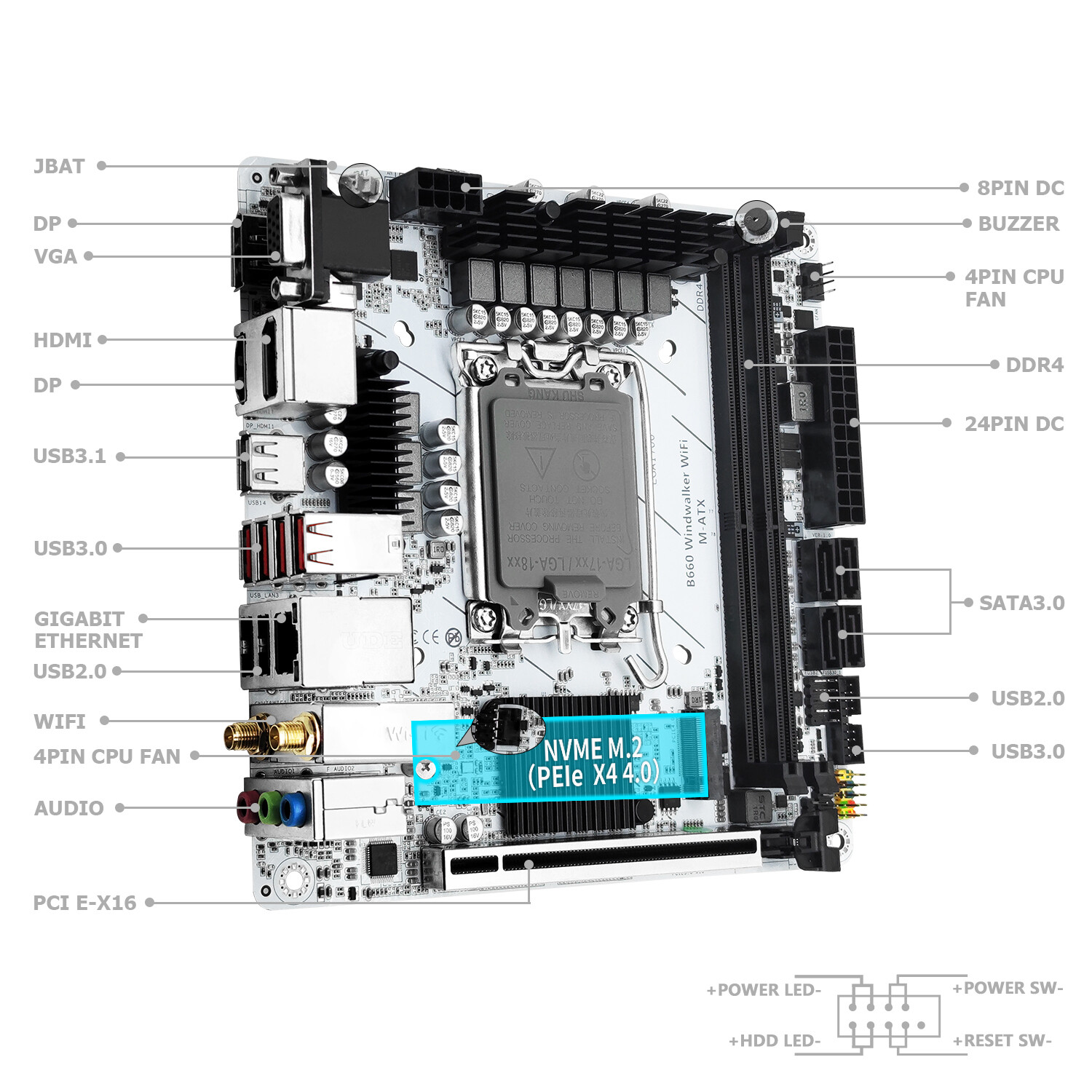

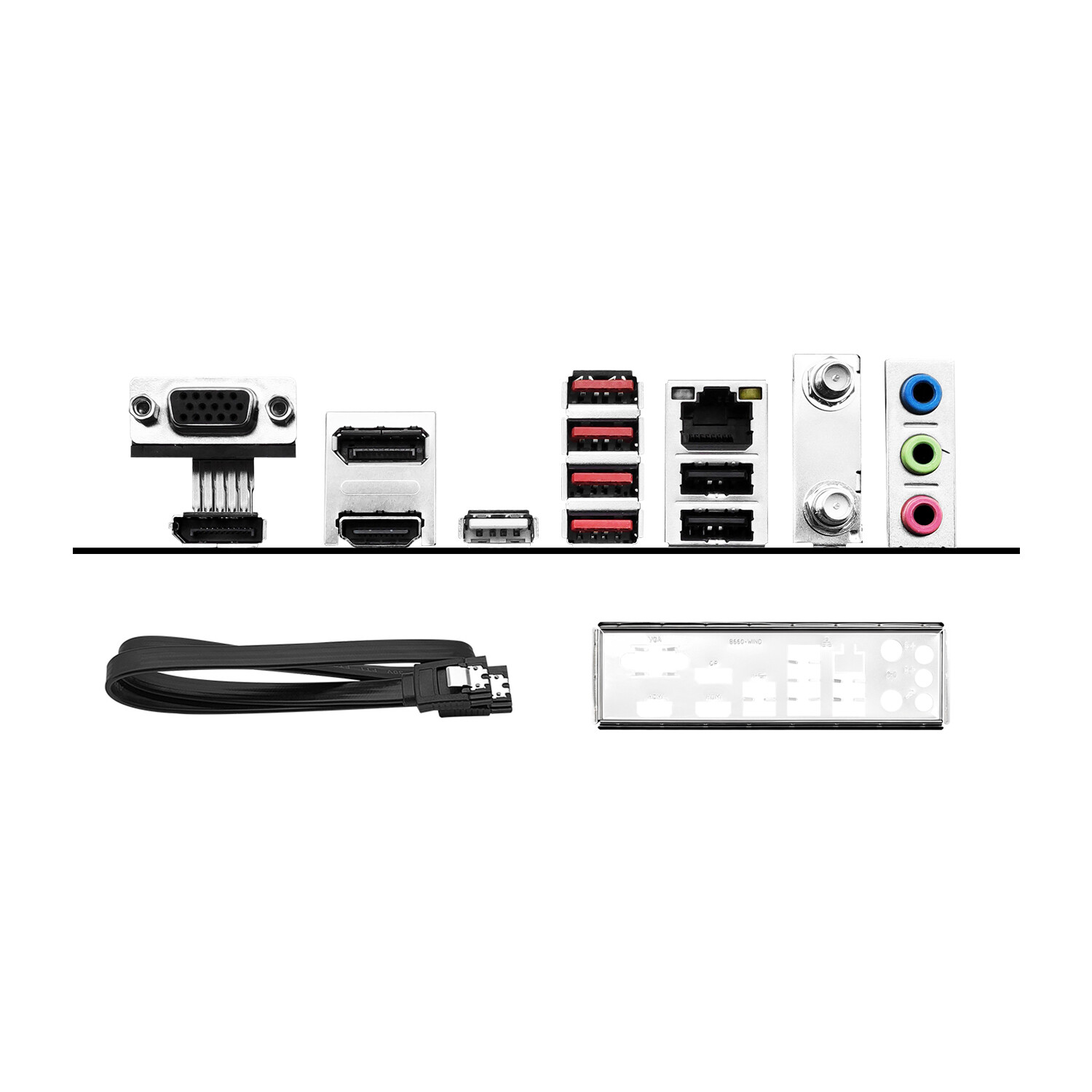

Specification: Brand: MACHINIST Model: MACHINIST B660 Windwalker WiFi Motherboard CPU Socket: LGA 1700, supports Intel 12 processors CPU Ｍemory Socket: 2*DDR4 memory socket， Maximum Memory Capacity 64G Ｍemory Standard: Support Dual channel DDR4 3200/2933/2666/2400MHz SATA Inderface: 4 *SATA3.0 6Gbps interface Extended Inderface: VGA*1,DP*2,HDMI*1,USB 3.2*1,USB 3.0*4,USB 2.0*2,RJ45*1，Audio Jack*3，WiFi Antenna interface*2 Onboard Pin & Interface：24PIN mainboard power port /8PIN CPU power port /4PIN CPU fan port/audio port on the front panel /USB 2.0 3.0 front panel port /4PIN system fan port x1/ Power port on the front panel of the chassis/COM port on the front of the chassis Sound Track: Realtek High Definition Audio Network Interface: Gigabit Ethernet Power Interface: 24pin+8pin PCB layer: 4 layers PCB，10Phases power supply Dimension: 170MM*170MM, ITX Motherboard weight(including package): about 800g Application: Desktop, Server, Workstation, Mining Usage Scenario: Enthusiast & Overclocking, Gaming, Audio & Video, Household, Office, Design, Video Production, Server, Others Note: 1)The motherboard has an integrated graphics card, which can support the integrated graphics card 2) No cooler stand base Packaging List: 1Pcs x MACHINIST B660 Windwalker WiFi Motherboard LGA 1700 Support Intel Core 12 13 Gen CPU Processor Dual Channel DDR4 RAM Memory ITX 1Pcs x I/O Shield 1Pcs x SATA Cable Important! - We don't have the User Manual & Driver in the packing box, But we have PDF versions of them, if you need them, please let us know, and we can send them to you via email. If you mind of those, please don't purchase., thank you for your understanding and time. Kindly: 1: The color of the bottom slot plate may vary from batch to batch, but it will not affect the use of the product. Products are continually optimized and updated. 2: Due to manual measurement, please allow a difference of 1-3mm. 3: Due to the different monitors and different lights, the picture may not show the actual color of the item. Thank you for your understanding. 4: This planform needs a powerful power source. Make sure your power supply is sufficient to support this plan. (At least 500w type power supply) 5: The battery in the motherboard photos will be removed before shipping because the use of batteries is prohibited in the CN post and customs.
