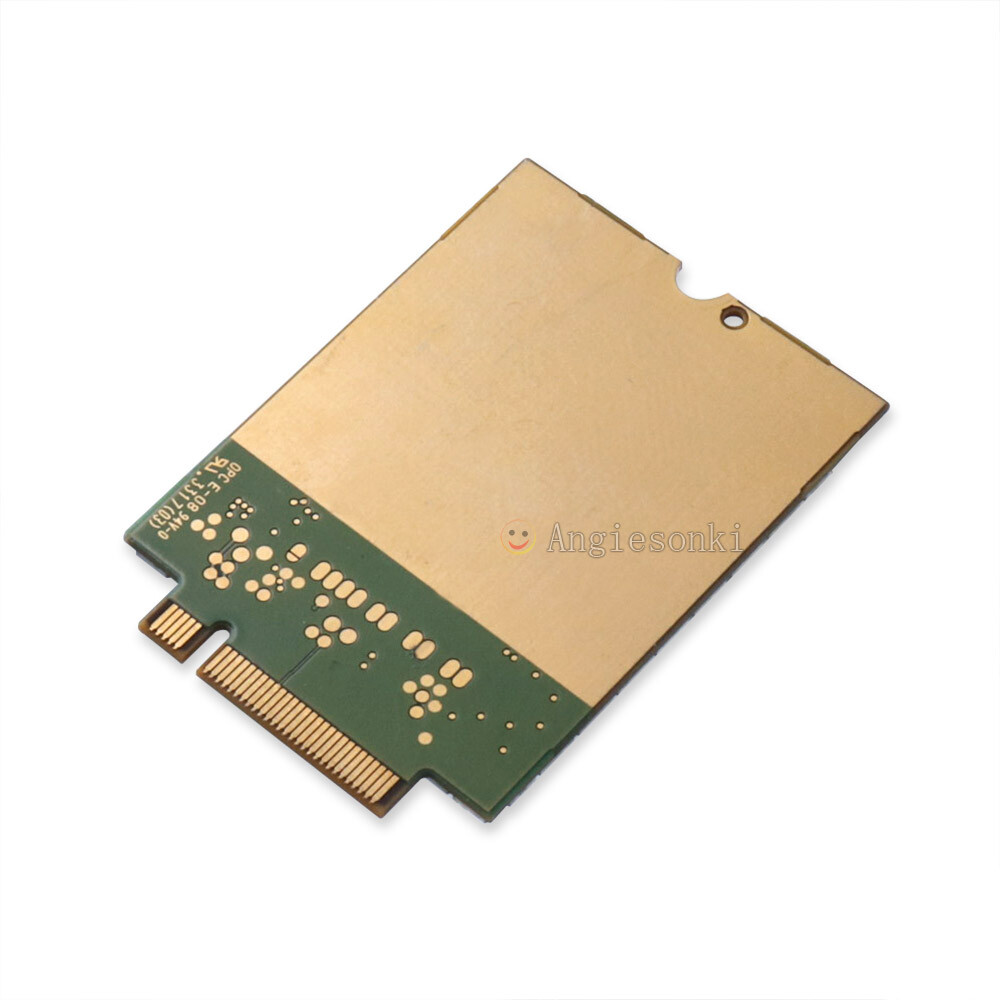

lenovo Sierra AirPrime Wireless EM7565 4G LTE CAT-12 600Mbps NGFF PCIE Module
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| MPN | N/A |
| Unit Type | Unit |
| Internal Interfaces | m.2 |
| Country/Region Of Manufacture | China |
| UPC | Does not apply |
| Compatible Port | NGFF |
| Model | EM7565 |
| External Interfaces | Ethernet/ Network Cards |
| Number Of Ports | 1 Port |
| Form Factor | PC Card Type IV |
| Maximum Data Rate | 600 Mbps |
| Brand | SierraWireless |
| Type | Wireless |
| Interface Card Type | USB Cards |
Sierra Wireless EM7565 4G LTE CAT-12 600Mbps NGFF module |EM7565Sierra Wireless EM7565 4G LTE CAT-12 600Mbps NGFF module Before buying, Please make sure that your Telecom Provider's Network bands can support this device's bands.Only work on Lenovo ThinkPad P52s..... Don't work on Dell, Toshiba, Acer, Sony, Samsung and Asus Laptops Sierra AirPrime EM7565 Technical Specifications:* Form factore: PCI Express M.2* Category: LTE Cat.12* Chipset/Processor: Qualcomm MDM9250* Supported LTE Frequency bands: B1, B2, B3, B4, B5, B7, B8, B9, B12, B13, B18, B19, B20, B26, B28, B29, B30, B32, B41, B42, B43, B46, B48, B66* Supported 3G Frequency bands: B1, B2, B3, B4, B5, B6, B8, B9* Date Rates: peak download rate up to 600Mbps/ peak upload rate up to 150Mbps* Satellite Systems: Galileo, Glonass, GPS, Beidou* Interfaces: USB 3.0, USB 2.0 High Speed, SIM interface x 1 (1.8V/3V)* Control Options: APIs, AT Commands* Dimensions: 42x30x2.3mm* Antenna: Diversity, MIMO, GNSS Bias* Antenna Connectors: Main, Aux/GNSS, GNSS* Temperature Range: -30°C / +70°C '-40°C / +85°C (TBC)* Firmware: Pre-certified firmware, Secure boot* System Drivers: Windows® 8, Windows® 8.1, Windows® 10, Linux Driver: Standard ECM, Android RIL* Planned Carrier AT&T, docomo, Telstra, Verizon, Vodafone* Cloud services: Free Unlimited FOTA upgrades, Connectivity Management option, Device Management option, Application Enablement option* Connectivity: Optional Ready-to-Connect Sierra Wireless embedded SIM
