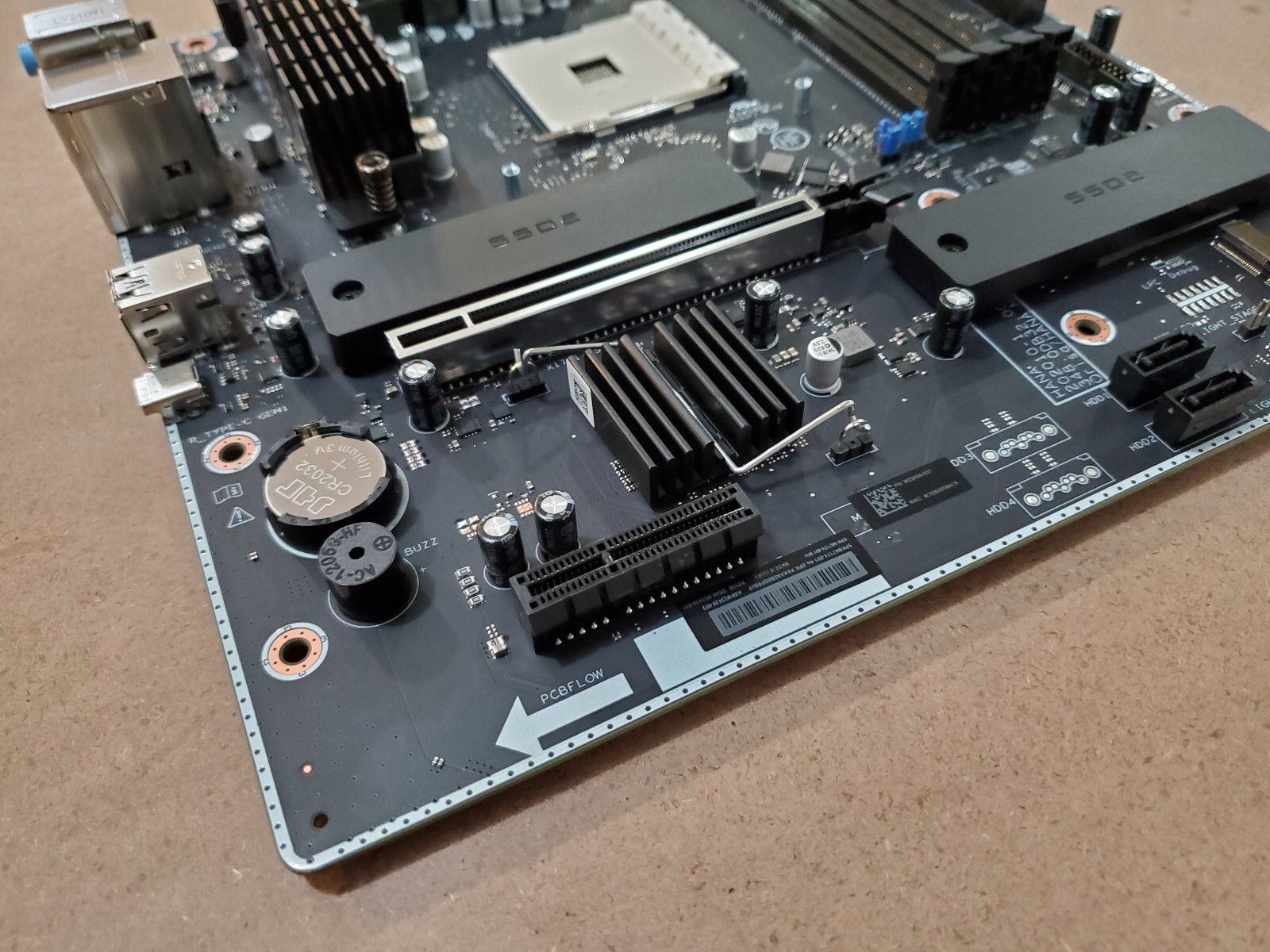

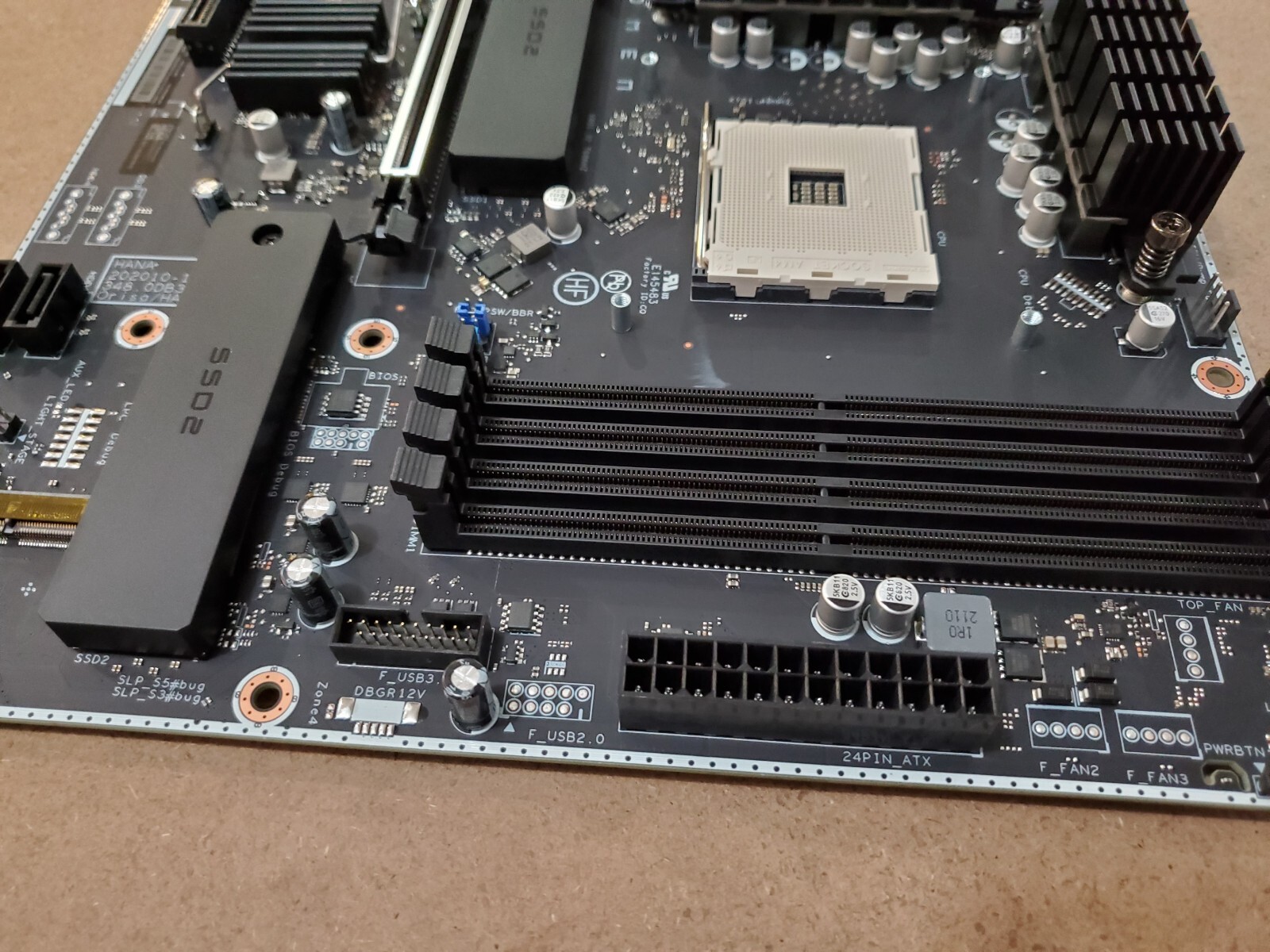

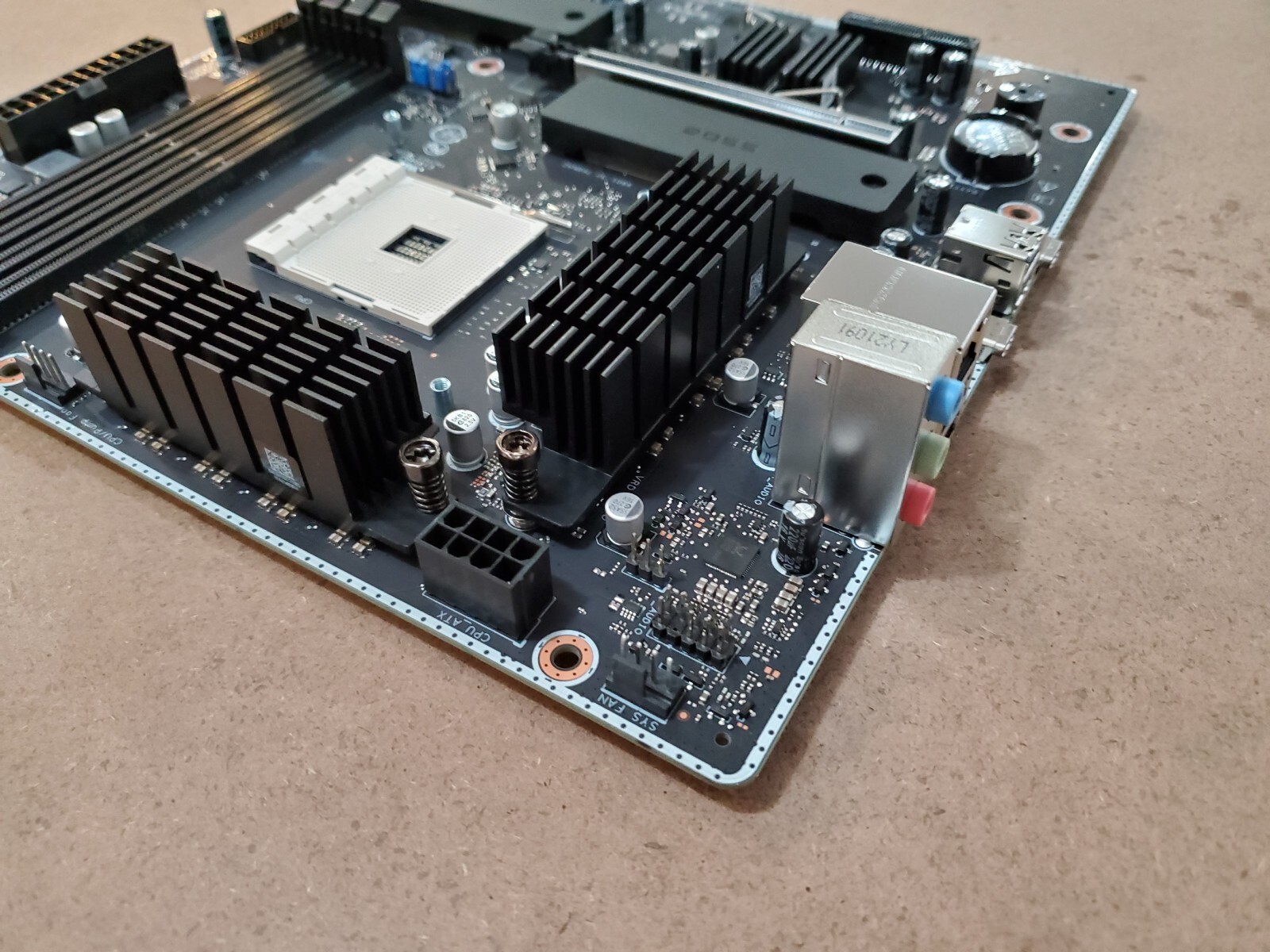

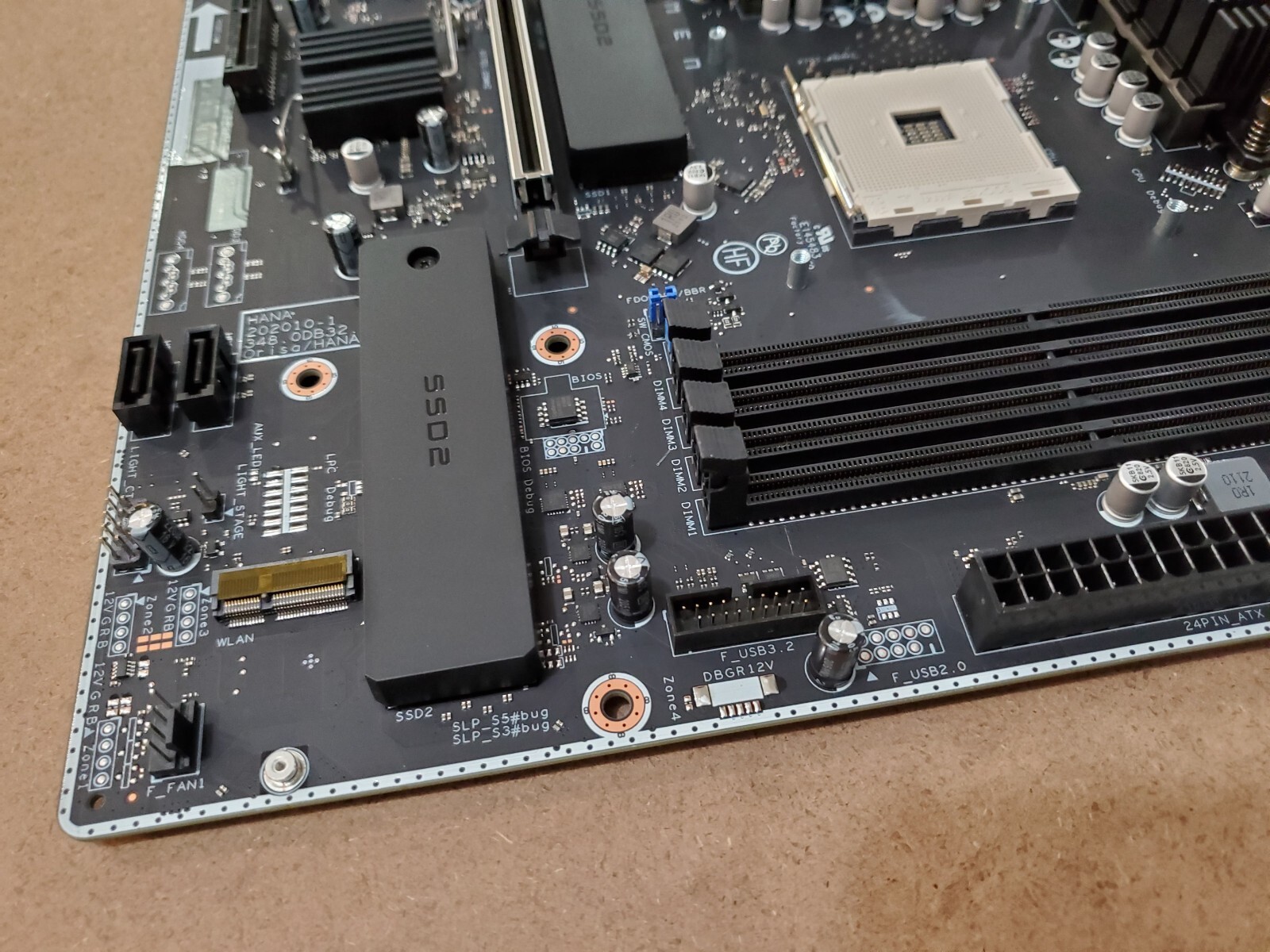

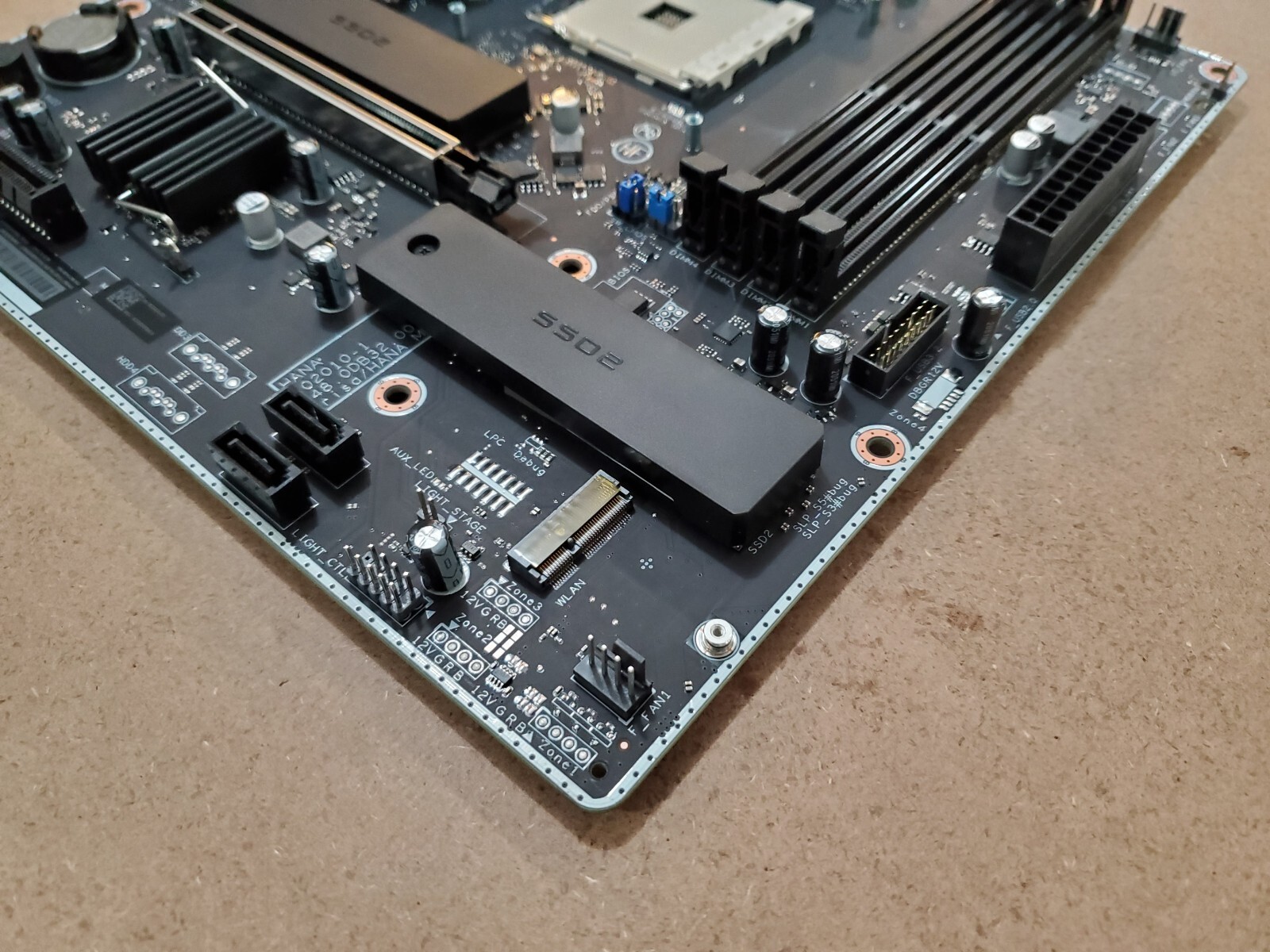

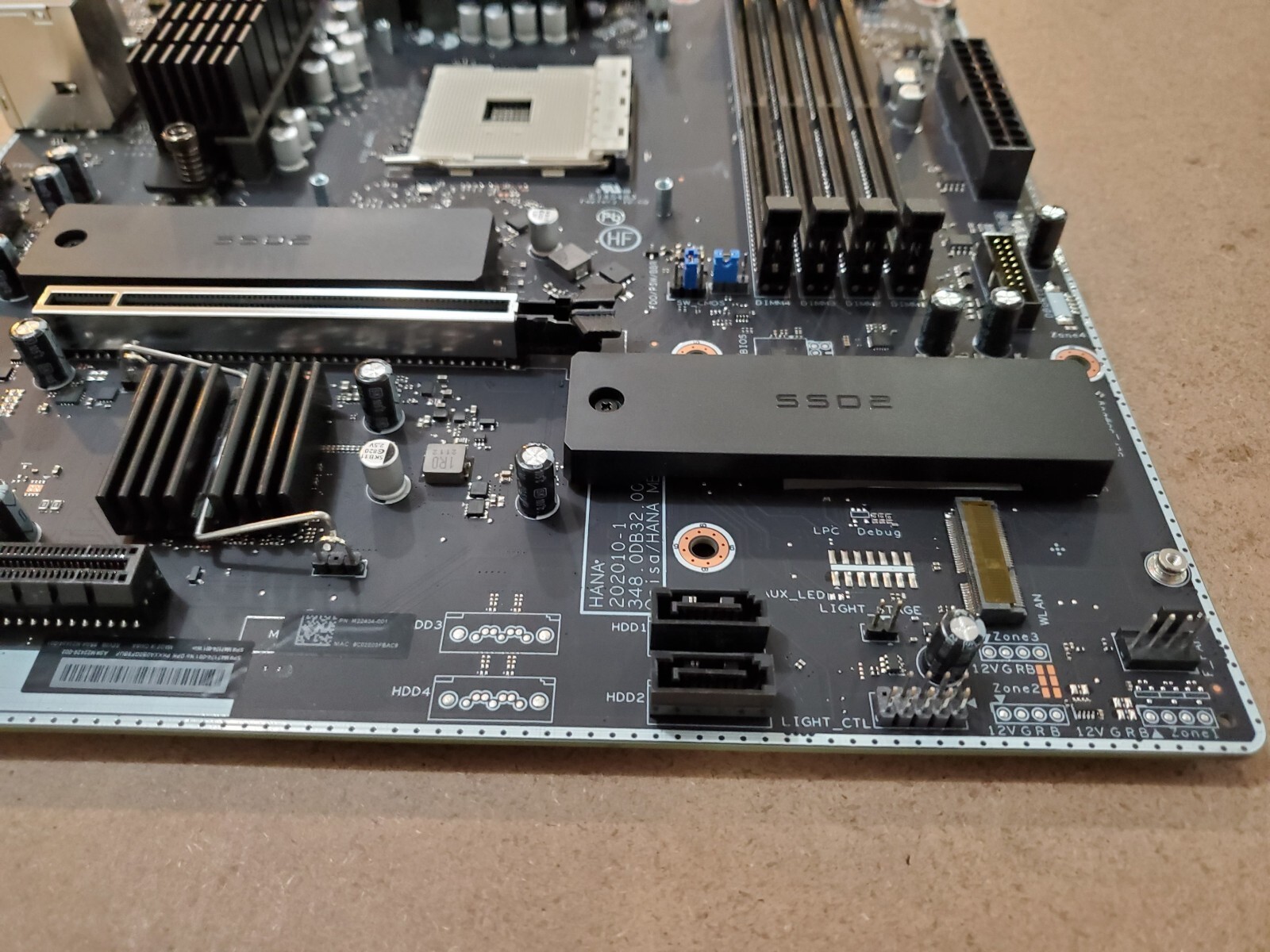

HP OMEN 30L GT13-1074 Motherboard AMD Ryzen 5000 mATX Micro ATX AM4 B550
Specifications
| Return Shipping Will Be Paid By | Seller |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Form Factor | MicroATX |
| Socket Type | Socket AM4 |
| Compatible CPU Brand | AMD |
| Memory Type | DDR4 SDRAM |
| Model | OMEN 25L GT12 |

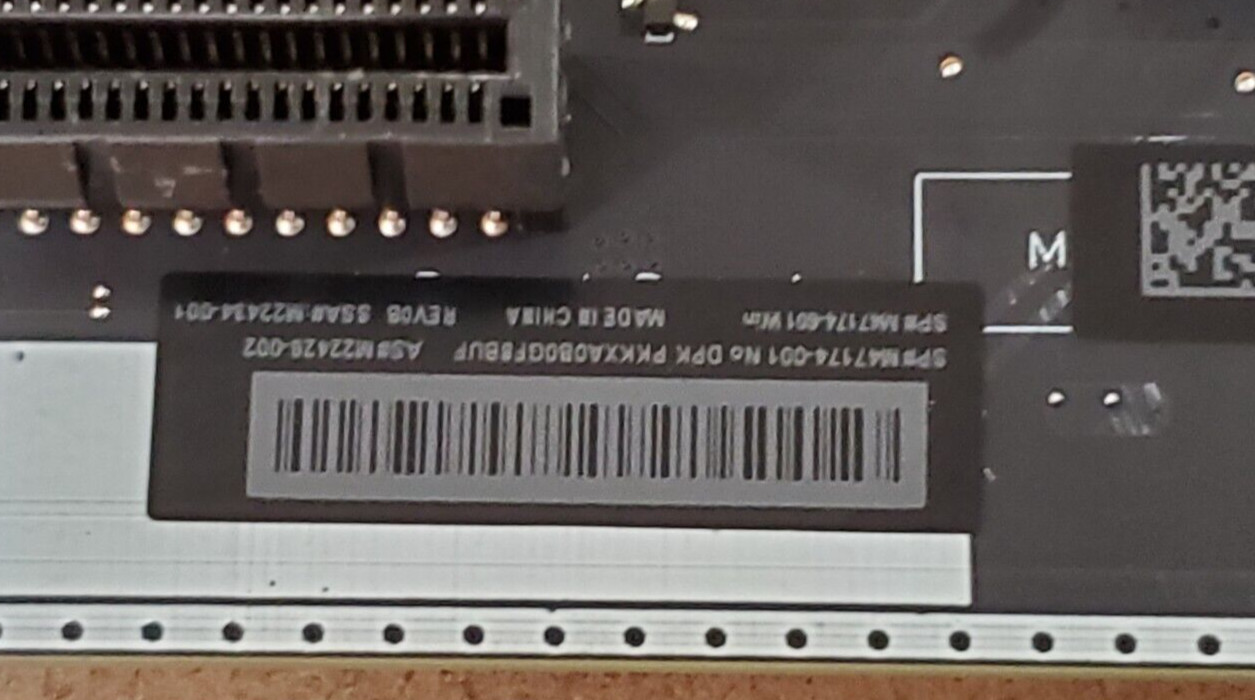

| MPN | M47174-001 |
| Most Suitable For | Gaming |

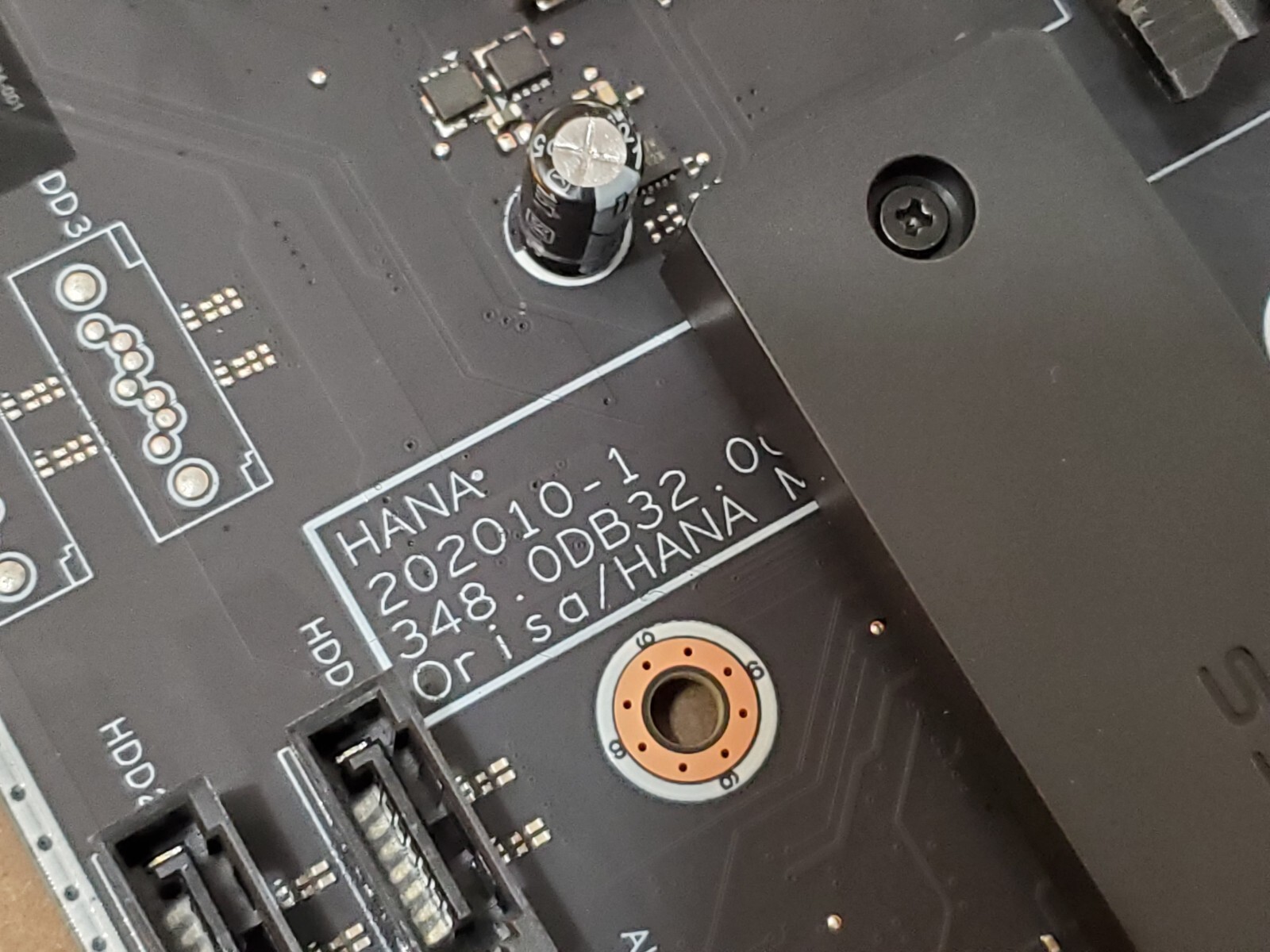

Motherboard descriptionHP name: HanaSSID: 8876Form FactorMicro ATX, channel board exchangeableDimensions: 24.0 x 24.0 cm (9.45 x 9.45 in)ChipsetB550Processor upgrade informationTDP: Up to 105 WSocket type: AM4Hana motherboard supports the following processor upgrades:ProcessorTDPAMD Ryzen 5 5600G (Cezanne) 3.9 GHz base clock, up to 4.4 GHz max boost clock, 16 MB L3 cache, 6 cores65 WAMD Ryzen 5 5600X (Vermeer) 3.7 GHz base clock, up to 4.6 GHz max boost clock, 32 MB L3 cache, 6 cores105 WAMD Ryzen 7 5700G (Cezanne) 3.8 GHz base clock, up to 4.6 GHz max boost clock, 16 MB L3 cache, 8 cores65 WAMD Ryzen 7 5800X (Vermeer) 3.8 GHz base clock, up to 4.7 GHz max boost clock, 32 MB L3 cache, 8 cores105 WAMD Ryzen 9 5900X (Vermeer) 3.7 GHz base clock, up to 4.8 GHz max boost clock, 64 MB L3 cache, 12 cores105 WMemory upgrade informationDual channel (two DIMMs per channel) memory architectureFour DDR4 UDIMM (288-pin) socketsSupports up to PC4-25600 (DDR4-3200)Supports 8 GB and 16 GB DDR4 UDIMMsSupports up to 4 GB on 32-bit systemsNOTE: 32-bit systems cannot address a full 4.0 GB of memory.Supports up to 64 GB (unbuffered) with 16 GB DIMMs on 64-bit computersNOTE: The listed maximum memory reflects the capability of the hardware. You can further limit the amount of memory used via the operating system.No integrated graphicsThe Hana motherboard does not support integrated graphics.AudioAudio Codec: ALC3866-CGOmen Audio Control Support DTS:X UltraHigh Definition (Azalia) 5.1 channel audio supportNOTE: The motherboard supports 5.1 surround sound.If the computer does not have the required audio jacks for a 5.1 configuration, you require additional hardware to play 5.1 surround sound.Audio jack presence detectionNOTE: Integrated audio does not include an internal speaker. Use external speakers or headphones to hear audio.Integrated audio is unavailable for computers with a sound card.Ethernet LAN: 1000BASE-TTechnology: Realtek RTL8118 ASH-CGData transfer speeds: Up to 10/100/1000 Mb/sTransmission standards: 1000BASE-T EthernetExpansion slots(1) PCI Express 4.0 x16 lanes(1) PCI Express 3.0 x1 lanes(1) M.2 socket 1, key A(2) M.2 socket 3, key M (one for SSD card PCIe Gen 3.0 x4)Back I/O portsNOTE: The configuration might vary depending on your model. Any modifications or upgrades might change the configuration, port accessibility, and port functionality.(1) RJ-45 Ethernet port(3) Audio ports (line-in/line-out/microphone)(2) USB 2.0 Type-A ports(1) USB 3.2 Gen 1 Type-A port (5 Gbps signaling rate)(1) USB 3.2 Gen 2 Type-A port (10 Gbps signaling rate)(1) USB 3.2 Gen 1 Type-C port (5 Gbps signaling rate)(1) USB 3.2 Gen 2 Type-C port (10 Gbps signaling rate)Front I/O portsCalloutI/O Port Type1USB 3.2 Gen 1 Type-A ports (5 Gbps signaling rate; Battery Charging 1.2)2Headphone/microphone combo jack3Microphone jack4Power button
